Bayanin Sabis
Wannan na'urar tsinke tantanin halitta tana aiki akan ƙaƙƙarfan ƙa'idar juyi da mirgina don ƙirƙirar tsagi iri ɗaya. Ana manne iyawar baturi amintacce kuma yana jujjuya shi cikin babban sauri. Ingantacciyar injuna, kayan aikin abin nadi mai tauri sannan kuma ana ci gaba da radiyo a jikin bangon gwangwani karkashin matsananciyar servo mai sarrafawa. Ta hanyar wannan tsari na sanyi{3}, ƙarfe yana gudana don ƙirƙirar santsi, ci gaba da tsagi tare da ƙayyadaddun zurfin, faɗi, da bayanin martaba. Mabuɗin ƙalubalen fasaha ya ta'allaka ne a cimma cikakkiyar daidaito -kowane bambancin zai iya haifar da gazawar rufewa. Don haka, samfuran ci-gaba sun haɗa da sa ido na ƙarfi na lokaci na gaske da sarrafa zurfin daidaitawa don rama bambance-bambancen kauri na kayan, tabbatar da kowane tsagi ya dace da ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun ƙayyadaddun bayanai don amintaccen walda na Laser na gaba.

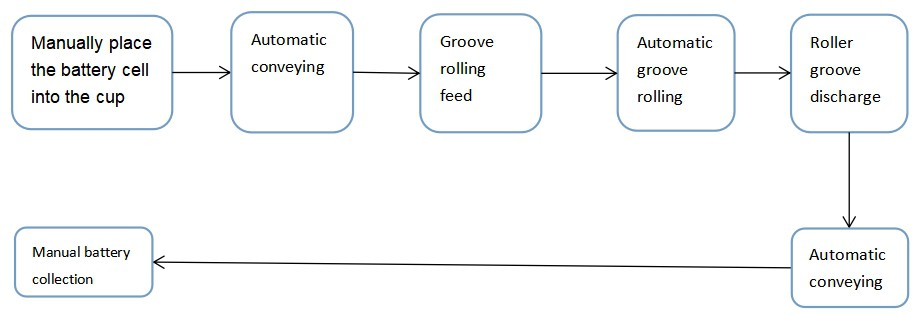

Fasaha da Tsari
Mahimman sigogi
1. Ƙimar wutar lantarki: 220V 50Hz
2. Ƙarfin ƙima: 1.5kw
3. Matsin iska mai aiki: 6kgf/cm2
4. Ƙayyadaddun bayanai: 18650 / 21700/26700/{4}}
5. Gabaɗaya girma (tsawon × nisa × tsawo): 1150 × 710 × 1 600 mm (batun ainihin girma)
6. Zaman lafiyar aikin farawa na kayan aiki ya fi 98%.
7. Ayyukan aiki: 20 pcs / min
8. Launi na kayan aiki: (za'a iya daidaita shi bisa ga bukatun abokin ciniki)
Ma'aunin Fasaha
|
Abu |
Matsakaicin iyaka (mm) |
Haƙuri daidai |
Bayyanar |
|
Tsage tsayin kafada H3 |
±0.1 |
Tab ba shi da lalacewa ko wrinkles; Harsashin karfe ba shi da tsagewa ko karyewa |
|
|
Tsagi diamita na ciki D2 |
±0.08 |
||
|
Mirgine tsagi kasa tsayi H2 |
±0.1 |
||
|
Jimlar tsayi H1 |
± 0.15 |
||
|
Ramin diamita na waje D1 |
±0.08 |
||
|
Ana iya daidaita duk matakan aiwatar da sama a cikin kewayon Mafi Girma ko daidai da 2mm |
|||
Halayen ayyuka
1. Wannan na'ura tana amfani da ƙirar aikin allo na taɓawa, wanda ke da sauƙin aiki.
2. Motar tana motsa hob maimakon silinda na gargajiya (ba a iyakance ta matsa lamba ba).
4. Na'urar tana da tsari na tsaye, wanda ya dace da fitarwa da tattarawa, yana da daidaito mai kyau, kuma ya dace da samar da tsari.
5. An daidaita zurfin tsagi da nisa ta hanyar micrometer, tare da babban madaidaici da sauƙin daidaitawa
6. Jimlar tsayin baturi da tsayi na sama ana iya daidaita su tare da micrometer
7. (Hob, kai, wutsiya) guda uku{1}} Matsayin maki daidai ne kuma ana iya daidaita shi sosai
8. Babban kan yana ɗaukar tsari mai kyau{1} don sauƙaƙe daidaita tsayi
Alamar kayan lantarki da daidaitattun sassa
1. Control PLC: Mitsubishi Xinjie
2. Motar sarrafa saurin gudu: Zhongda
3. Silinda: AirTac
4. Solenoid bawul: AirTac
5. Sensor: AirTac
6. Touch Screen: Kunlun Tongtai
7. Hanyar dogo mai jagora na layi: Taiwan Hiwin
Jerin kayan sawa da kayan gyara
|
S/N |
Abu |
Kayan abu |
Yawan |
|
1 |
Kai mai tsinke |
DC53 |
1 |
|
2 |
Mirgine tsagi kasa mutu |
Cemented Carbide |
1 |
|
3 |
Hob |
DC53 |
1 |
